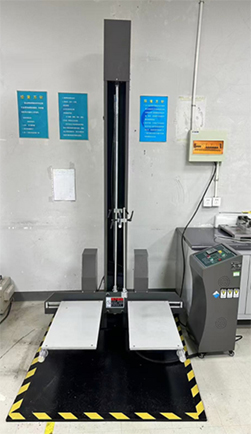

Test Range

400~1800 mm

Max Weight

100 kg

Max Size

800×800×800 mm

Impact Panel Size

1400×1200×16 mm

Arm Size

700×250 mm

Error Range

±10 mm

Dimension

1400×1200×2400 mm

Drive System

Manual width adjustment, electric drive

Temperature range

20℃~30℃

Humidity range

40%~70%

Control accuracy

 Temperature：±0.5℃

Humidity：±2% RH

Indication resolution

Temperature：±0.01℃

 Humidity：±0.1% RH

Capacity

20 ton

Unit switching

Kg、Ib、N、KN

Analytical scale

1/200,000

Accuracy

±0.5%

Compression space

2000×2300×2200mm or specified

Compression speed

0.01~200mm/min.

Display mode

 U60 computer system

Volume (approx.)

280.8×230.3×430.7cm(excluding computer)

Power

3∮AC380V 50Hz(as per country or specified)

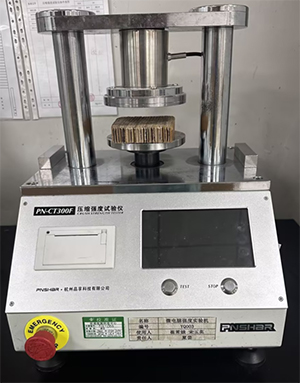

Measuring Range

≤5000N

Units

N、kgf、lbf

Resolution

0.1N

Error Range

±1%

Test Size

⌀136mm

Dimension

375×345×505mm

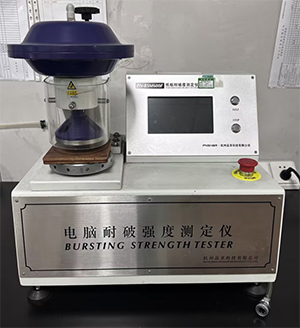

Measuring Range

≤5500 kPa

Units

kPa、kgf/cm²、lbf/in²

Resolution

0.1 kPa

Error Range

±0.5%FS

Variability

≤0.5%

Sample Holding System

Top Chuck Plate  Φ31.5±0.1 mm

Bottom Chuck Plate  Φ31.5±0.1 mm

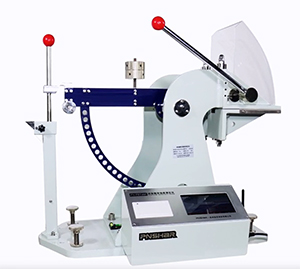

Measuring Range

＜48J

Dial Resolution

Gear A：＜  6 J  Resolution：±0.05J

Gear B：＜12 J  Resolution：±0.10J

Gear C：＜24 J  Resolution：±0.20J

Gear D：＜48 J  Resolution：±0.50J

Dimension

865×495×780mm
